Automatic Desktop Type Automatic Screw locking machine for toys
Automatic Desktop Type Automatic Screw locking machine for toys
  • Automatic Desktop Type Automatic Screw locking machine for toys

  • Model No: WPM-4220-2Z

  • Automatic Desktop Type Automatic Screw locking machine for toys electric products,Automatic Lock Screw-Machine, Automatic Screw Tightening Machine, Automatic Electric Screw Driving Machine
    MODEL WPM-4220-2Z
    Locking screw range X200×Y1/420/Y2/420×Z135mm(X×Y×Y×Z)
    Locking screw time 1~1.5sec/pc
    Repetitive accuracy +/-0.03mm
    Program Record Model 15set, each set 99POINTS
    Electric batch mode Precision Servo motor Japan Brand
    Feeding model Vacuum Suction
    Control system SCM and Touch screen
    Motor system Precision close loop stepper motor
    Driving model Taiwan brand Precision linear guide
    Input power supply 220V 50HZ/60HZ
    Working air supply 0.4~0.6MPA
    Editorial Model Manual/Automatic
    Working temperature 5~40℃
    Working humidity 20-90%
    Applicable scre

  • Inquiry now
Detailed description
Automatic Desktop Type Automatic Screw locking machine for toys electric products, Automatic Lock Screw-Machine, Automatic Screw Tightening Machine, Automatic Electric Screw Driving Machine


Automatic Lock Screw Machine (Vacuum Suction Type)

 Scope of application:

Applicable to all kinds of toys, small household appliances, electronic products, instrumentation, lighting, electronics, plastic, alloy, communication equipment, audio, and other locking screw technology

 1. Machine specification:

1. Vacuum suction screw structure can realize the standard plane structure of product locking screw position and the locking function of meson screw.
2. Two-mode left-right alternating replacement of products to achieve a high-efficiency mode of work
3. Supporting Leakage Lock/Sliding Teeth/Floating Teeth Alarm Function
4. Supporting the regulation function of pre-placing, post-placing, and replacing
5. Supporting automatic induction start-up operation function and servo batch speed and torsion self-regulation function
6. Supporting hand-driven adjusting function for adjusting and comparing lock screw points

 2. Parameters:

MODEL

WPM-4220-2Z

Locking screw range

X200×Y1/420/Y2/420×Z135mm(X×Y×Y×Z)

Locking screw time

1~1.5sec/pc

Repetitive accuracy

+/-0.03mm

Program Record Model

15set, each set 99POINTS

Electric batch mode

Precision Servo motor Japan Brand

Feeding model

Vacuum Suction

Control system

SCM and Touch screen

Motor system

Precision close loop stepper motor

Driving model

Taiwan brand Precision linear guide

Input power supply

220V 50HZ/60HZ

Working air supply

0.4~0.6MPA

Editorial Model

Manual/Automatic

Working temperature

5~40

Working humidity

20-90%

Applicable screw

All kinds of screws

Suitable screw size

M1~M4(screw length max.16MM) or CUSTOM

Machine size

970×820×900mm(L×M×H)

Machine weight

100KG

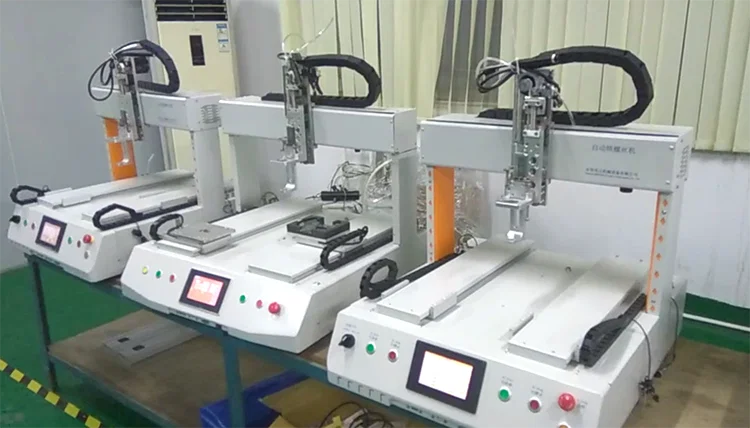

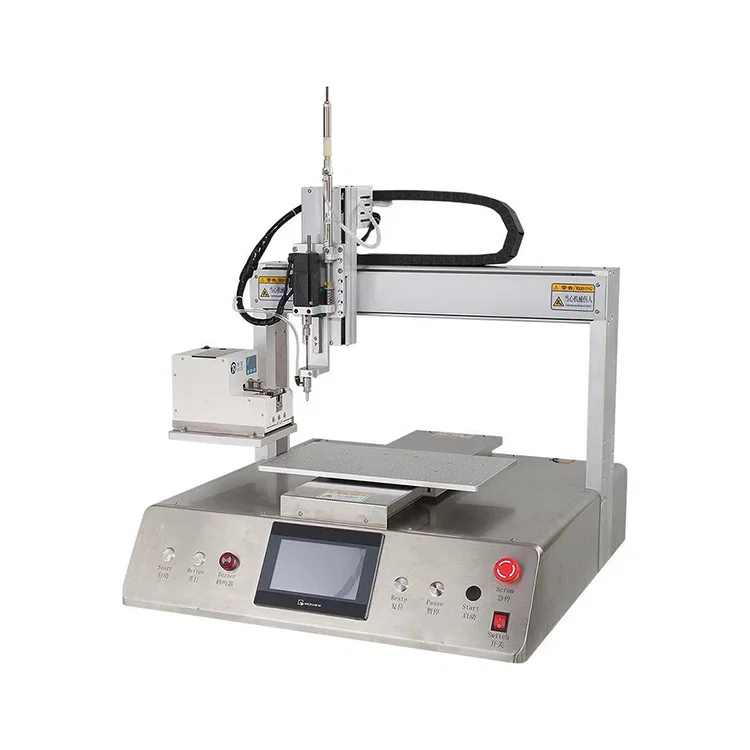

 3. Machine Photos:
Automatic Lock Screw-Machine, Automatic Screw Tightening Machine, Automatic Electric Screw Driving MachineAutomatic Lock Screw-Machine, Automatic Screw Tightening Machine, Automatic Electric Screw Driving MachineAutomatic Lock Screw-Machine, Automatic Screw Tightening Machine, Automatic Electric Screw Driving MachineAutomatic Lock Screw-Machine, Automatic Screw Tightening Machine, Automatic Electric Screw Driving MachineAutomatic Lock Screw-Machine, Automatic Screw Tightening Machine, Automatic Electric Screw Driving Machine
