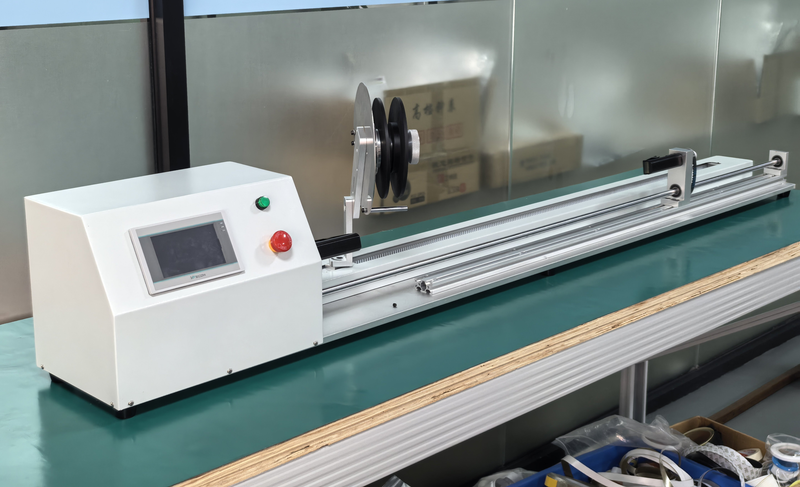

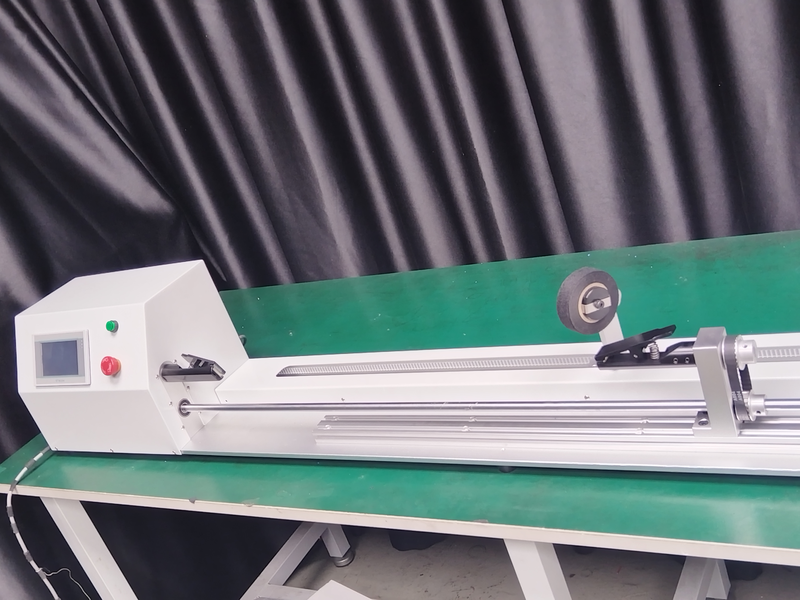

Adhesive Tape Translational Winding Machine JW-303Q
Adhesive Tape Translational Winding Machine JW-303Q Thumb Adhesive Tape Translational Winding Machine JW-303Q Thumb
Play Video

Adhesive Tape Translational Winding Machine JW-303Q

  • Model No: JW-303Q

  • Specifications

    Operation Method: Touch Screen + Foot Switch
    Working Mode: Manual wire clamping, tape translation, product rotation for tape winding
    Power Supply: AC210V～AC240V
    Winding Length: Fixed length (non-standard lengths subject to separate order); maximum length of standard machine is 1000mm
    Winding Combined Wire Diameter: 3mm-10mm
    Tape Specifications: Inner diameter 38mm or 32mm, outer diameter ≤100mm, width ≤25mm (custom tape holders available for other tape sizes)
    Tape Types: PVC, Flannel, Acetate Cloth Tape, etc.
    Operating Temperature: 0-45℃
    Operating Humidity: 10-90%RH (no condensation)
    Cooling Method: Natural Air Cooling
  • Inquiry now

Adhesive Tape Translational Winding Machine Model JW-303Q

Product Overview


The JW-303Q is a high-performance adhesive tape translational winding machine designed for precise and efficient tape winding operations. It integrates user-friendly operation with reliable performance, suitable for various tape types and application scenarios requiring stable winding quality.


Technical Parameters


  • Operation Method: Touch Screen + Foot Switch
  • Working Mode: Manual wire clamping, tape translation, product rotation for tape winding
  • Power Supply: AC210V～AC240V
  • Winding Length: Fixed length (non-standard lengths subject to separate order); maximum length of standard machine is 1000mm
  • Winding Combined Wire Diameter: 3mm-10mm
  • Tape Specifications: Inner diameter 38mm or 32mm, outer diameter ≤100mm, width ≤25mm (custom tape holders available for other tape sizes)
  • Tape Types: PVC, Flannel, Acetate Cloth Tape, etc.
  • Operating Temperature: 0-45℃
  • Operating Humidity: 10-90%RH (no condensation)
  • Cooling Method: Natural Air Cooling


Configuration List


Serial No.
Category
Name
Quantity
Unit
Equipped
Brand
1
Core Components
Stepper Motor
1
Piece
Yes
Best
2
Core Components
Display Screen
1
Unit
Yes
Weikong
3
Core Components
Controller
1
Set
Yes
Weinview
4
Core Components
Driver
2
Units
Yes
Best
5
Core Components
Power Switch
1
Piece
Yes
Mean Well
6
Core Components
Slide Rail
1
Set
Yes
Domestic Brand
7
Tools & Accessories
Hex Key Wrench
1
Set
Yes
Yuda
8
Tools & Accessories
Power Cord
1
Piece
Yes
Changde
9
Tools & Accessories
Foot Pedal
1
Piece
Yes
Changde


2.5 Wire Diameter Wrapping Cloth Base Tape, 19mm Width
U-Shaped Fixture for Preventing Wire from Being Pulled Away by Adhesive Tape
2000mm Effective Length Machine + Fixture: Wire Run-Up Prevention
Aluminum Foil Wrapping Equipment: Paper Release Unit + Auto Paper Collection
Stranded Wire Two-Color Tape - Adjustable Density for Single Color Display
Acetate Adhesive Tape Backing Release Liner with Export Function
