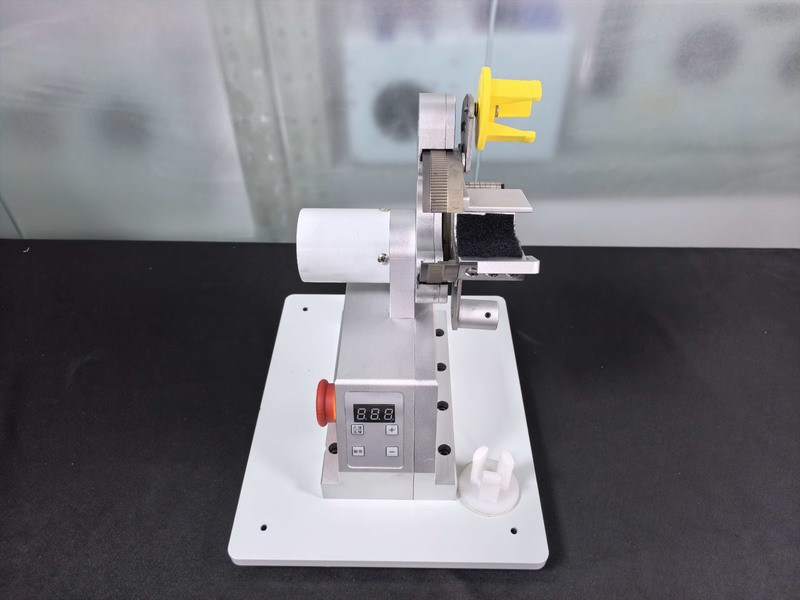

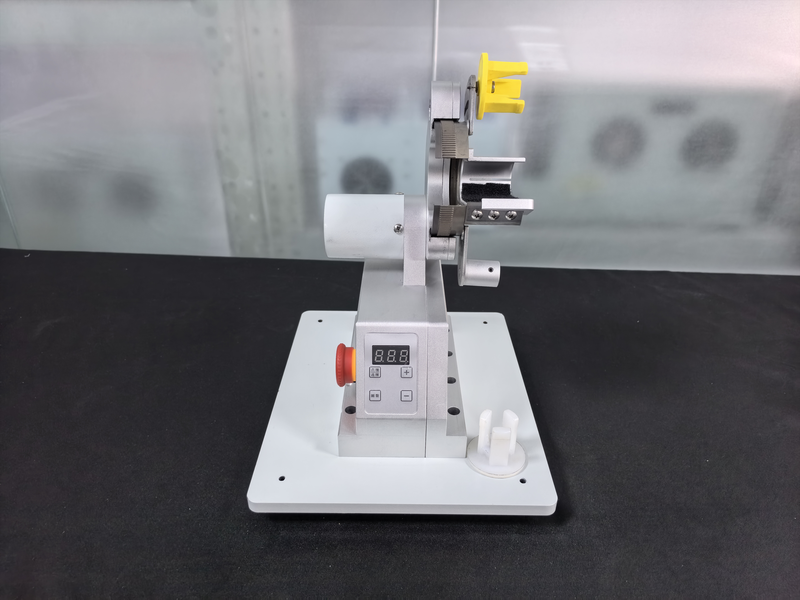

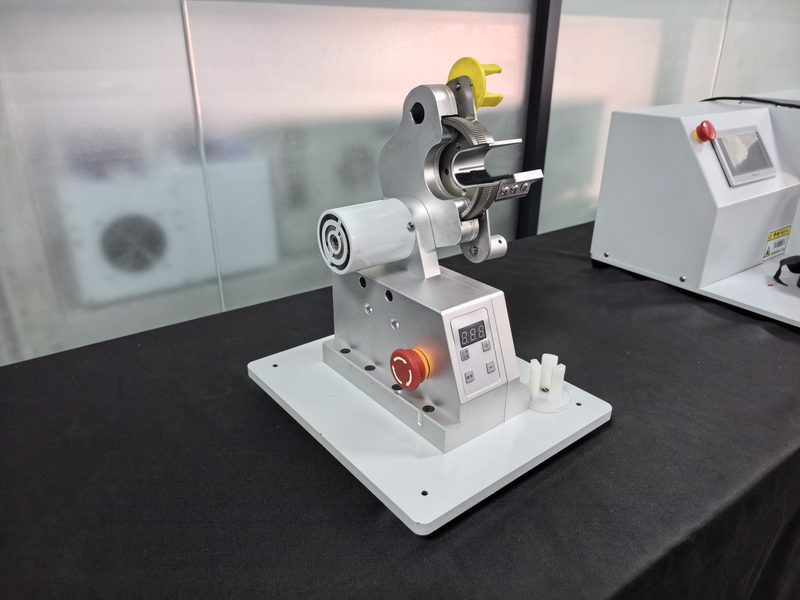

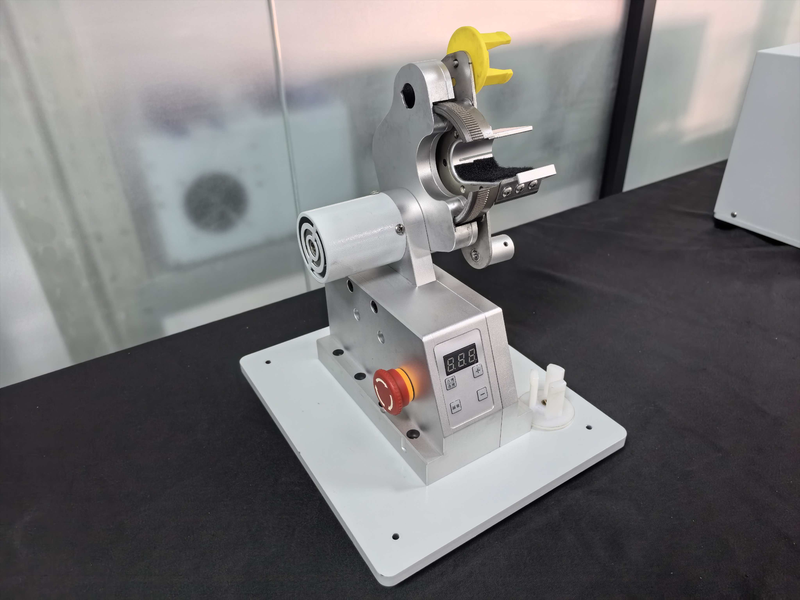

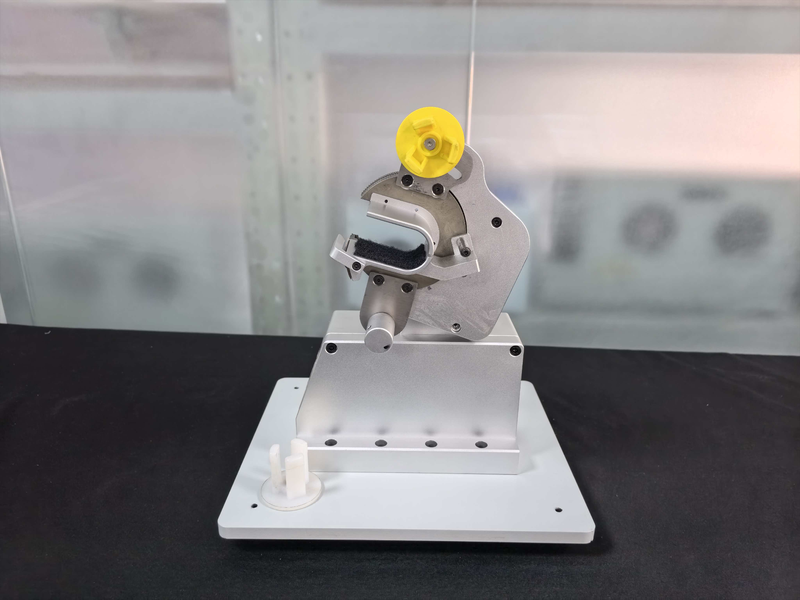

JW-25W Vertical Cloth Winding Machine

Machine Overview

Technical Parameters

• Machine Model: JW-25W
• Machine Type: Vertical Cloth Winding Machine
• Voltage: 100-240V 50/60HZ
• Machine Dimensions: W300*L250*H330mm
• Net Weight: 10kg
• Winding Mode: Spiral Winding
• Applicable Tapes: PVC, Vinyl, Flocked Cloth, Cloth-Based Tape, High-Temperature Tape, Ceramic Tape, etc.
• Applicable Wire Diameter: 3-25mm
• Tape Width: 5-25mm
• Maximum Tape Outer Diameter: 110mm
• Tape Inner Hole Size: 38mm/32mm optional, others customizable
• Winding Direction: Left and Right
• Speed: 1-9 Gears (Adjustable)
• Spot Winding Turns: 1-99 Turns (Adjustable)

Machine Features

• Compact & Flexible Design: With small volume and light weight, it occupies little space and is easy to move, adapting to different workshop layouts.

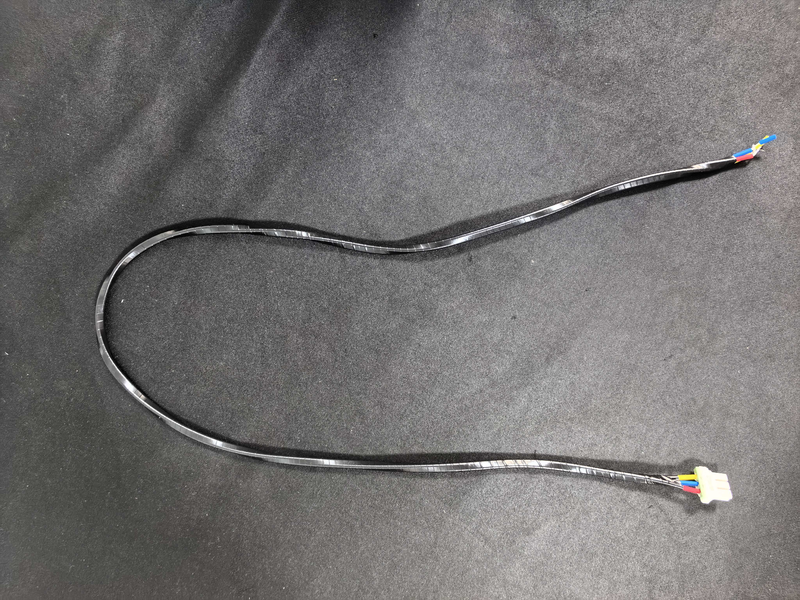

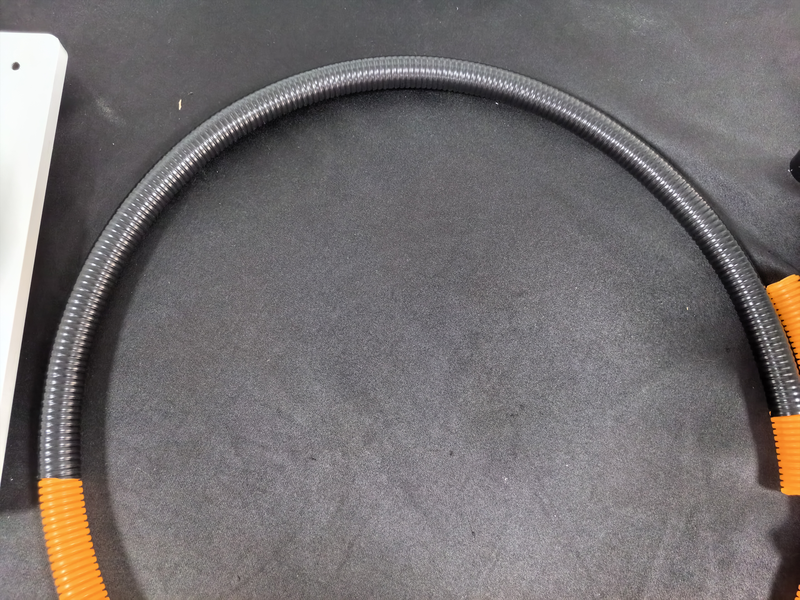

• Wide Application: Specifically suitable for short wire winding and multi-branch wire winding, meeting diverse production needs.

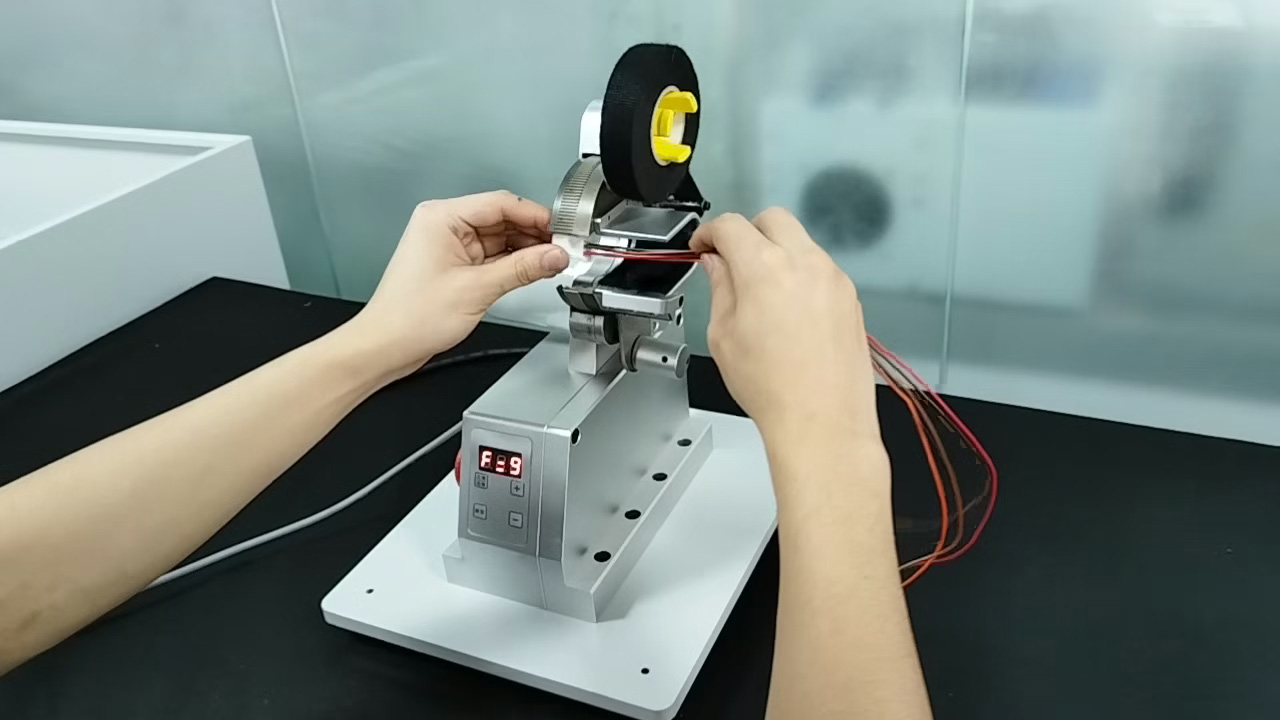

• Easy Operation: Simple gear adjustment for speed and spot winding turns, lowering the learning threshold for operators.
• Strong Compatibility: Compatible with various types of tapes and a wide range of wire diameters, enhancing production versatility.
