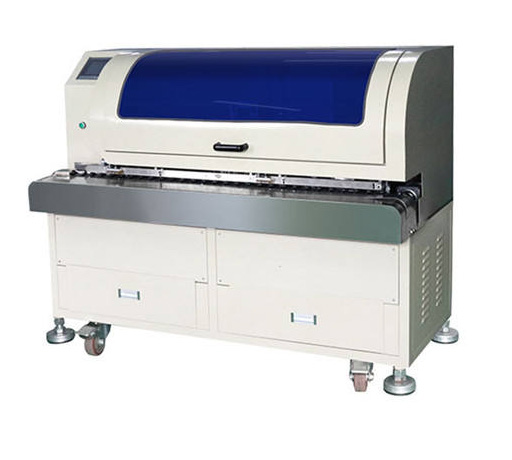

Cable Stripping and Braided Shield Brushing Twisting Machine CS-BST007

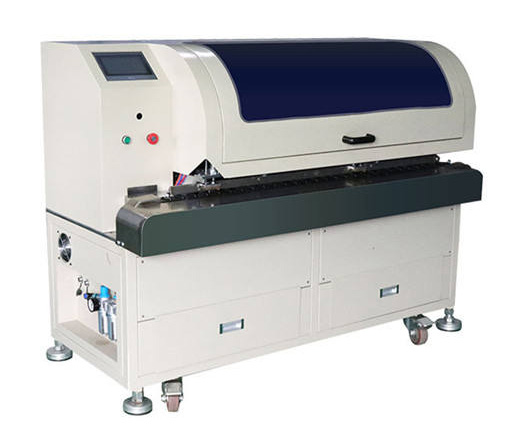

Cable Stripping and Braided Shield Brushing Twisting Machine CS-BST007 Thumb Cable Stripping and Braided Shield Brushing Twisting Machine CS-BST007 Thumb
Play Video

Cable Stripping and Braided Shield Brushing Twisting Machine CS-BST007

  • Model No: CS-BST007

  • Specifications

    Model (Basic Information) CS-BST007
    Net Weight (Basic Information) Not specified
    Dimension (L×W×H) (Basic Information) 2350×880×1500mm
    Diameter of Applicable Wire Φ2~8mm (can be customized)
    Jacket Stripping Length 10~60mm (can be customized)
    Capacity (Processing Efficiency) 1200~1500pcs/hour
    Rated Power (Power Requirement) 600W
    Power Supply (Power Requirement) AC220V 50HZ
    Working Air Pressure 0.5~0.7MPa; Must use clean, dry and stable compressed air
    Control Mode Touch screen + PLC control; Processing parameters (e.g., cylinder delay, speed, motor position) can be set on the screen
  • Inquiry now

Cable Stripping and Braided Shield Brushing Twisting Machine CS-BST007

1. Technical Specifications

Parameter Category

Specific Parameters

Remarks

Basic Information

Model

CS-BST007

Net Weight

Not clearly specified

Dimension (L×W×H)

2350×880×1500mm

Wire Processing Params

Diameter of Wire

Φ2~8mm (can be customized)

Jacket Stripping Length

10~60mm (can be customized)

Capacity

1200~1500pcs/hour

Power & Air Pressure Params

Rated Power

600W

Power Supply

AC220V 50HZ

Air Pressure

0.5~0.7MPa (Must be clean, dry and stable compressed air)

Control & Operation Params

Control Mode

Touch screen and PLC control mode; processing parameters (such as cylinder delay, speed, motor position, etc.) can be set in the screen

Working Modes

Two working modes: single cycle and continuous cycle (can be switched as needed for machine operation and debugging)

Safety & Structure Params

Safety Protection

Equipped with an openable safety cover and pneumatic support rod open method (safe and beautiful)

Structural Design

Designed by human structural mechanics to reduce fatigue strength

Integrated Functions

Integrated Functions

Wire jacket stripping, braided shield brushing and twisting, braided shield tip trimming, aluminum foil mylar cutting and removing, automatically finished product collecting

2. Product Description

This machine is specially designed for processing cables with braided shielding, such as USB data cable, 1185 DC cable, car connection cable, microphone cable, etc. It integrates multiple functions and can automatically complete the following actions: jacket stripping, shield brushing and twisting, braided shield tip cutting, aluminum foil mylar removing. Just put the wire to be processed on the conveyor chain, the machine will complete all the processes automatically.

3. Important Notes

1.            Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

2.            Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

3.            Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
